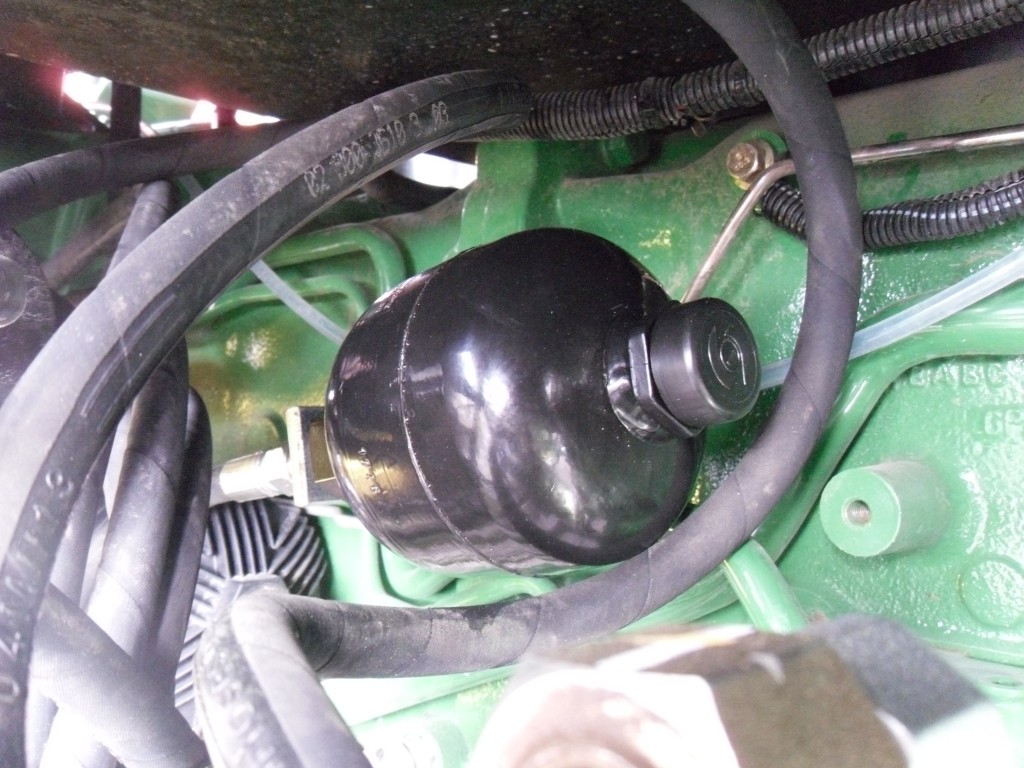

The Accumulator soft ride control protects the tractor, implement and front linakge from shock loads.
A 0.6 litre volume unit is used for linkages from 8kN (1760 lbs) – 35kN (7700 lbs) lift capacity, and 2x 0.6 litre units for 50kN (11000 lbs) – 70kN (15400 lbs) lift capacity linkages.

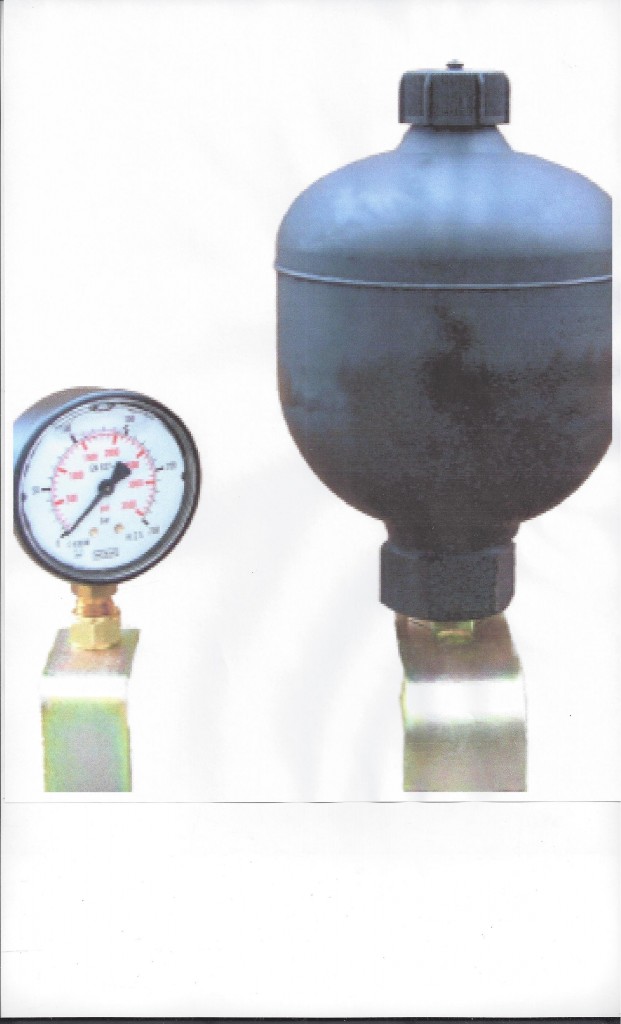

The accumulator in combination with a pressure indicator can be used to delegate the weight of the machine onto the tractor or vice versa. With this manometer it is possible to see how much pressure will be necessary to carry over a certain weight (how much the machine will be heavily loaded or relieved).
The accumulator has an internal pressure of 40 bar and is rated to a maximum pressure of 330 bar.
